Harmonized Codes
8539.52.0051
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Additional Info
Equivalent CCT selectable option available in S11766
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
DLC Classification
Standard
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Feature 10
210-degree beam angle
Feature 3
25W/28W/30W/32W Fluorescent Replacement
Feature 4
Ballast Bypass Type B
Feature 5
120-277V Range Voltage
Feature 6
Damp location rated
Feature 7
Suitable for use in enclosed fixtures
Feature 8
rated for use in damp locations
Flourescent Equivalent
25W/28W/30W/32W
Incandescent Equivalent
75W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Long Description

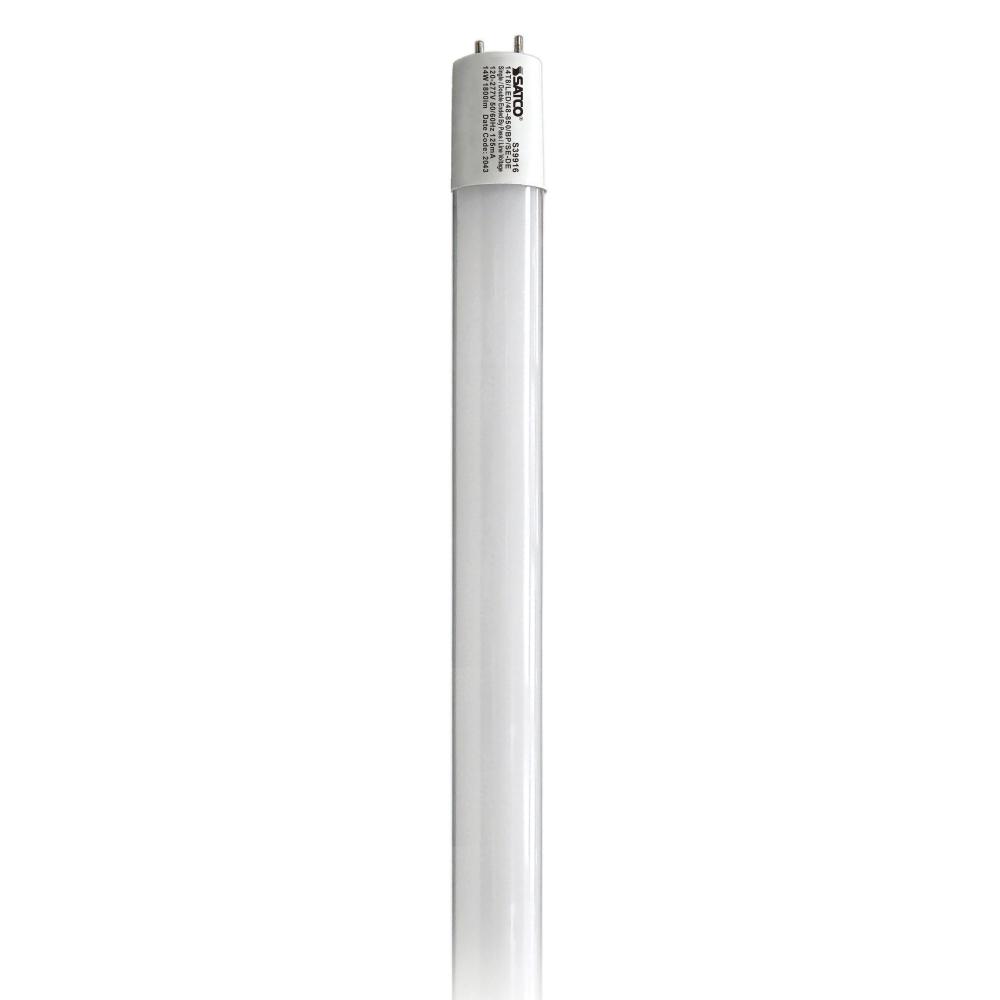

SATCO's S39916 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, h
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is b
Short Description
14T8/LED/48-850/BP/SE-DE
Specification Notes
Built-in shock resistant circuit - (not hot until both ends are installed)
Title 20 Compliant
Exempt
Total Harmonic Distortion
20%
