Sub-Category
HID Replacements
Bulb Dimmable
Non-Dimmable
Harmonized Codes
8539.52.0010
Warranty
5 Year Limited - Hi-Pro
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Enclosure Rating
Enclosed Rated Lamp
Feature 1
MOL: 6.66 inches, MOD: 3.22 inches
Feature 2
Superior 80 CRI light quality, 3275 lumens, 2700K warm white light, with a 280 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
25 watt LED replaces 200W incandescent
Feature 6
Frost finished bulb with white plastic housing
Feature 7
5 year limited warranty
Incandescent Equivalent
200W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lens Material
Plastic (PS)
Long Description

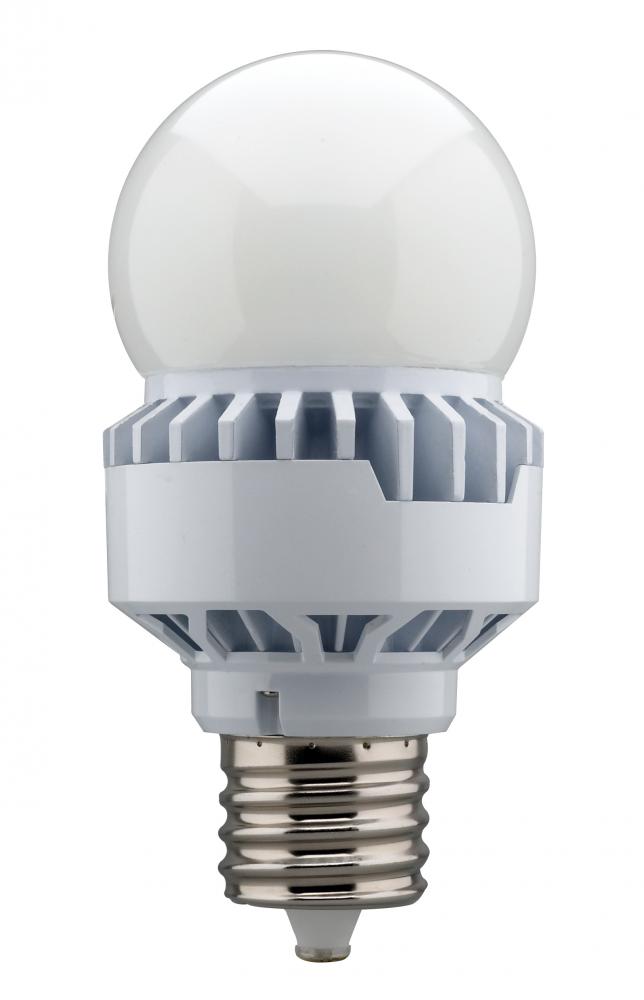

Satco's S13104 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kel
Minimum Compartment Size
Diameter: 6 in. Height: 8.5 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Romance Copy
Satco's 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kelvins, t
Short Description
25WA23/LED/27K/100-277V/EX39
Title 20 Compliant
Exempt
