Part Number: K0ZK / Vendor ID Number: 90 / Custom:

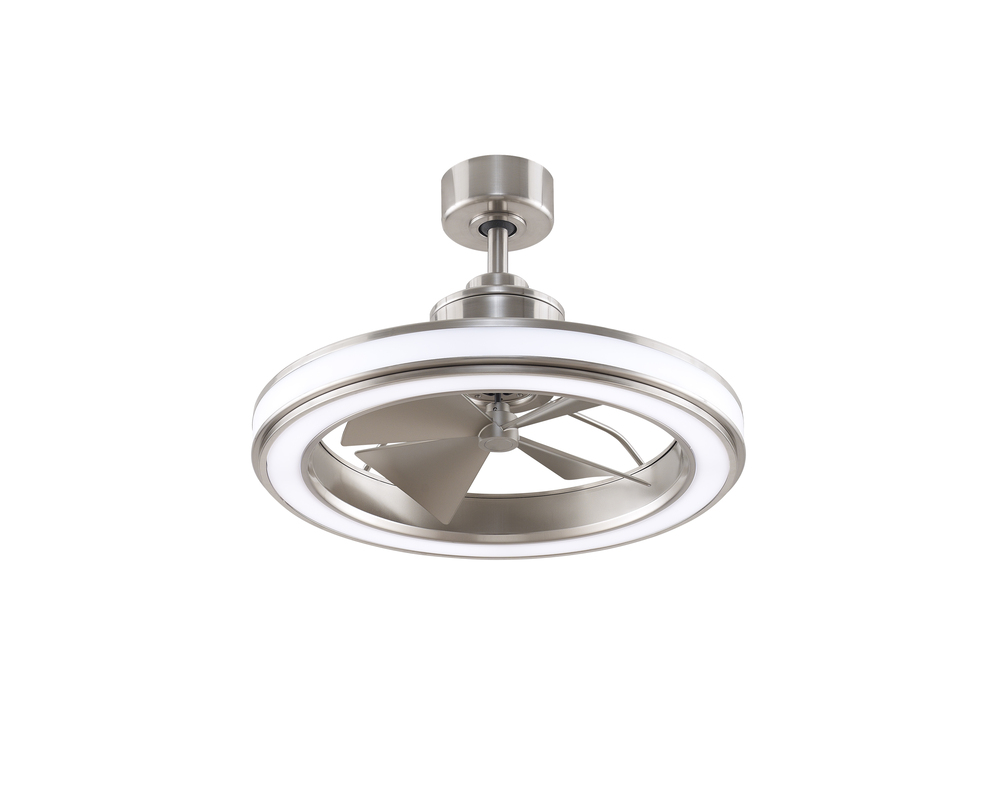

Gleam - 16 inch - BN with LED Light Kit

Gleam - 16 inch - BN with LED Light Kit

739
99
Pack Of: 1
1 Available in HOT DEALS Call for Availability
COGs: $369.62
Qty
Product Specification
Dimensions
Height: 14.91"
Width: 23.70"
Product Overview
Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with a 20 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with an 18 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Additional Information
1531 Cfm On High
20 Watt Led Light Kit And Bulb Included
3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
Limited Lifetime Warranty
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Info & Guides
Technical Details
Energy Information at High Speed
Airflow:
1531 Cubic Feet per Minute
Electricity Rate:
44.8 Watts (excluded lights)
Airflow Efficiency:
34 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Nickel /vendors/vendorImages nickel.jpg
Style:
Transitional
Option:
Damp Rated
LED
Voltage:
10-99
Glass Finish or Style:
Frosted
Opal
Lumens:
1601-2600
Number of Blades:
4 Blades
Location Rating:
Damp Rated
Wattage:
20w
Category:
Fan-Uni
Finish:
Brushed Nickel
Option:
Damp
Family:
Gleam
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
1531 CFM on High
20 watt LED light kit and bulb included
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
Limited Lifetime Warranty
TR500 handheld remote with 23A battery included
WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
1531
Air Flow Efficiency:
34
Amperage:
0.38
Blade Finish:
Brushed Nickel
Blade Pitch:
20
Bulb Type:
20 Watt LED Module
Canopy:
5.75 Dia x 2.57 H
Diameter:
23.7
Down Rod Included:
4.5
Electricity Used:
44.8
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
23.7
Light Kit Included:
Yes
Lumens / Light Output:
2200
Material:
Composite
Motor Fan Speed:
3
Motor RPM:
563
Motor Size:
82 X 30
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
11.5
Ship Carton Length:
25.71
Ship Carton Width:
25.63
Ship Weight:
25.55
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
20.9
Airflow Efficiency Low:
48
Airflow Efficiency Medium:
39
Avg Airflow Efficiency:
36
Avg CFM Energy:
1206
Avg Energy Use Watts:
33
Avg Estimated Yearly Energy Cost:
9
Avg Estimated Yearly Energy Cost on HIGH:
13
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
16
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
20
Canopy Diameter:
5.75 Dia
Canopy Height:
2.57 H
Cap Included:
No
Carton Cubic Feet:
4.39
Cartons Per Unit:
1
Case Height:
11.5
Case Length:
25.71
Case Quantity:
1
Case Weight Pounds:
25.55
Case Width:
25.63
CEC Uploaded:
Yes
Ceiling To Blade Edge:
14.67
Ceiling To Bottom:
14.91
CFM Low:
839
CFM Medium:
1287
Compatible Accessories:
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCB1-52
Compatible Controls:
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls:
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.38
Current Draw Low:
0.25
Current Draw Medium:
0.34
Damp Rated:
Yes
DOE Classification:
VSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
23.7
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
44.8
Maximum Slope Degree:
27
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
4
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High (VI):
563
RPM Low (II):
325
RPM Low II:
43
RPM Medium (IV):
461
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
17.5
Watts Medium:
33.3
Watts Per Bulb:
20
